パッチ"ESXi510-201212001.zip"の適用 / Hypervisor 5.1(ESXi)

[事前準備]

• すべての仮想マシンを終了する
• 事前にパッチファイル"ESXi510-201212001.zip"をデータストアにアップする
• SSH および ESXi シェルを有効にする
• TeraTerm など、ESXi ホストに SSH 接続できるツールを用意する

---

ESXi ホストをメンテナンスモードに変更

~ # esxcli vm process list[enter]
~ # esxcli system maintenanceMode get[enter]
Disabled
~ # esxcli system maintenanceMode set --enable=true[enter]
~ # esxcli system maintenanceMode get[enter]
Enabled
~ #

パッチの適用

~ # esxcli software vib update -d /vmfs/volumes/ds1/PATCH/ESXi510-201212001.zip[enter]
Installation Result
Message: The update completed successfully, but the system needs to be rebooted for the changes to be effective.
Reboot Required: true
VIBs Installed: VMware_bootbank_esx-base_5.1.0-0.9.914609, VMware_locker_tools-light_5.1.0-0.9.914609
VIBs Removed: VMware_bootbank_esx-base_5.1.0-0.5.838463, VMware_locker_tools-light_5.1.0-0.0.799733
VIBs Skipped: VMware_bootbank_ata-pata-amd_0.3.10-3vmw.510.0.0.799733, VMware_bootbank_ata-pata-atiixp_0.4.6-4vmw.510.0.0.799733, VMware_bootbank_ata-pata-cmd64x_0.2.5-3vmw.510.0.0.799733, VMware_bootbank_ata-pata-hpt3x2n_0.3.4-3vmw.510.0.0.799733, VMware_bootbank_ata-pata-pdc2027x_1.0-3vmw.510.0.0.799733, VMware_bootbank_ata-pata-serverworks_0.4.3-3vmw.510.0.0.799733, VMware_bootbank_ata-pata-sil680_0.4.8-3vmw.510.0.0.799733, VMware_bootbank_ata-pata-via_0.3.3-2vmw.510.0.0.799733, VMware_bootbank_block-cciss_3.6.14-10vmw.510.0.0.799733, VMware_bootbank_ehci-ehci-hcd_1.0-3vmw.510.0.0.799733, VMware_bootbank_esx-dvfilter-generic-fastpath_5.1.0-0.0.799733, VMware_bootbank_esx-tboot_5.1.0-0.0.799733, VMware_bootbank_esx-xlibs_5.1.0-0.0.799733, VMware_bootbank_esx-xserver_5.1.0-0.0.799733, VMware_bootbank_ima-qla4xxx_2.01.31-1vmw.510.0.0.799733, VMware_bootbank_ipmi-ipmi-devintf_39.1-4vmw.510.0.0.799733, VMware_bootbank_ipmi-ipmi-msghandler_39.1-4vmw.510.0.0.799733, VMware_bootbank_ipmi-ipmi-si-drv_39.1-4vmw.510.0.0.799733, VMware_bootbank_misc-cnic-register_1.1-1vmw.510.0.0.799733, VMware_bootbank_misc-drivers_5.1.0-0.0.799733, VMware_bootbank_net-be2net_4.1.255.11-1vmw.510.0.0.799733, VMware_bootbank_net-bnx2_2.0.15g.v50.11-7vmw.510.0.0.799733, VMware_bootbank_net-bnx2x_1.61.15.v50.3-1vmw.510.0.0.799733, VMware_bootbank_net-cnic_1.10.2j.v50.7-3vmw.510.0.0.799733, VMware_bootbank_net-e1000_8.0.3.1-2vmw.510.0.0.799733, VMware_bootbank_net-e1000e_1.1.2-3vmw.510.0.0.799733, VMware_bootbank_net-enic_1.4.2.15a-1vmw.510.0.0.799733, VMware_bootbank_net-forcedeth_0.61-2vmw.510.0.0.799733, VMware_bootbank_net-igb_2.1.11.1-3vmw.510.0.0.799733, VMware_bootbank_net-ixgbe_3.7.13.6iov-10vmw.510.0.0.799733, VMware_bootbank_net-nx-nic_4.0.558-3vmw.510.0.0.799733, VMware_bootbank_net-r8168_8.013.00-3vmw.510.0.0.799733, VMware_bootbank_net-r8169_6.011.00-2vmw.510.0.0.799733, VMware_bootbank_net-s2io_2.1.4.13427-3vmw.510.0.0.799733, VMware_bootbank_net-sky2_1.20-2vmw.510.0.0.799733, VMware_bootbank_net-tg3_3.110h.v50.4-4vmw.510.0.0.799733, VMware_bootbank_net-vmxnet3_1.1.3.0-3vmw.510.0.0.799733, VMware_bootbank_ohci-usb-ohci_1.0-3vmw.510.0.0.799733, VMware_bootbank_sata-ahci_3.0-13vmw.510.0.0.799733, VMware_bootbank_sata-ata-piix_2.12-6vmw.510.0.0.799733, VMware_bootbank_sata-sata-nv_3.5-4vmw.510.0.0.799733, VMware_bootbank_sata-sata-promise_2.12-3vmw.510.0.0.799733, VMware_bootbank_sata-sata-sil24_1.1-1vmw.510.0.0.799733, VMware_bootbank_sata-sata-sil_2.3-4vmw.510.0.0.799733, VMware_bootbank_sata-sata-svw_2.3-3vmw.510.0.0.799733, VMware_bootbank_scsi-aacraid_1.1.5.1-9vmw.510.0.0.799733, VMware_bootbank_scsi-adp94xx_1.0.8.12-6vmw.510.0.0.799733, VMware_bootbank_scsi-aic79xx_3.1-5vmw.510.0.0.799733, VMware_bootbank_scsi-bnx2i_1.9.1d.v50.1-5vmw.510.0.0.799733, VMware_bootbank_scsi-fnic_1.5.0.3-1vmw.510.0.0.799733, VMware_bootbank_scsi-hpsa_5.0.0-21vmw.510.0.0.799733, VMware_bootbank_scsi-ips_7.12.05-4vmw.510.0.0.799733, VMware_bootbank_scsi-lpfc820_8.2.3.1-127vmw.510.0.0.799733, VMware_bootbank_scsi-megaraid-mbox_2.20.5.1-6vmw.510.0.0.799733, VMware_bootbank_scsi-megaraid-sas_5.34-4vmw.510.0.0.799733, VMware_bootbank_scsi-megaraid2_2.00.4-9vmw.510.0.0.799733, VMware_bootbank_scsi-mpt2sas_10.00.00.00-5vmw.510.0.0.799733, VMware_bootbank_scsi-mptsas_4.23.01.00-6vmw.510.0.0.799733, VMware_bootbank_scsi-mptspi_4.23.01.00-6vmw.510.0.0.799733, VMware_bootbank_scsi-qla2xxx_902.k1.1-9vmw.510.0.0.799733, VMware_bootbank_scsi-qla4xxx_5.01.03.2-4vmw.510.0.0.799733, VMware_bootbank_scsi-rste_2.0.2.0088-1vmw.510.0.0.799733, VMware_bootbank_uhci-usb-uhci_1.0-3vmw.510.0.0.799733
~ #

再起動

~ # esxcli system shutdown reboot -r "Patch : ESXi510-201210001.zip"[enter]
~ #

メンテナンスモードの終了

~ # esxcli system maintenanceMode get[enter]
Enabled
~ # esxcli system maintenanceMode set --enable=false[enter]
~ # esxcli system maintenanceMode get[enter]
Disabled
~ #

---

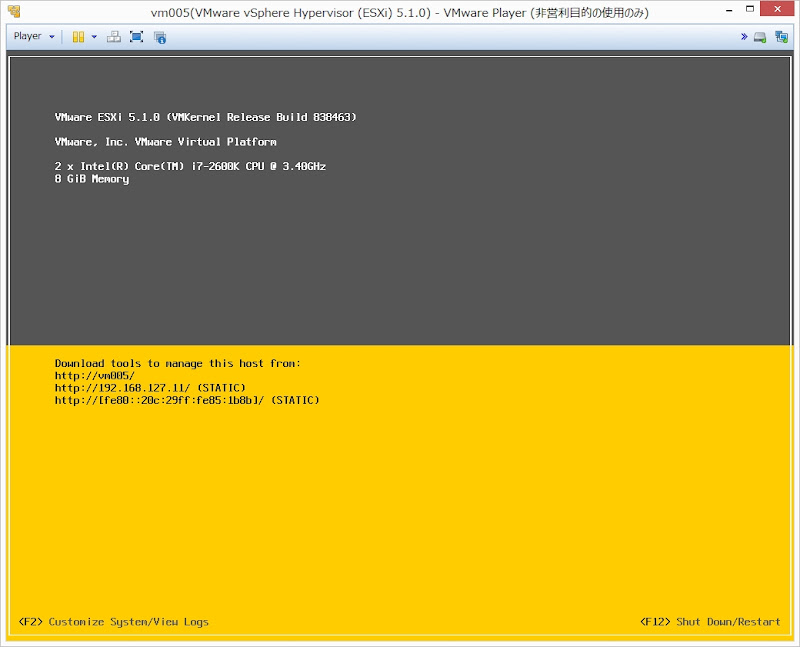

パッチ適用前：Build 838463

パッチ適用後：Build 914609
